DESIGNED AND MADE IN CALIFORNIA

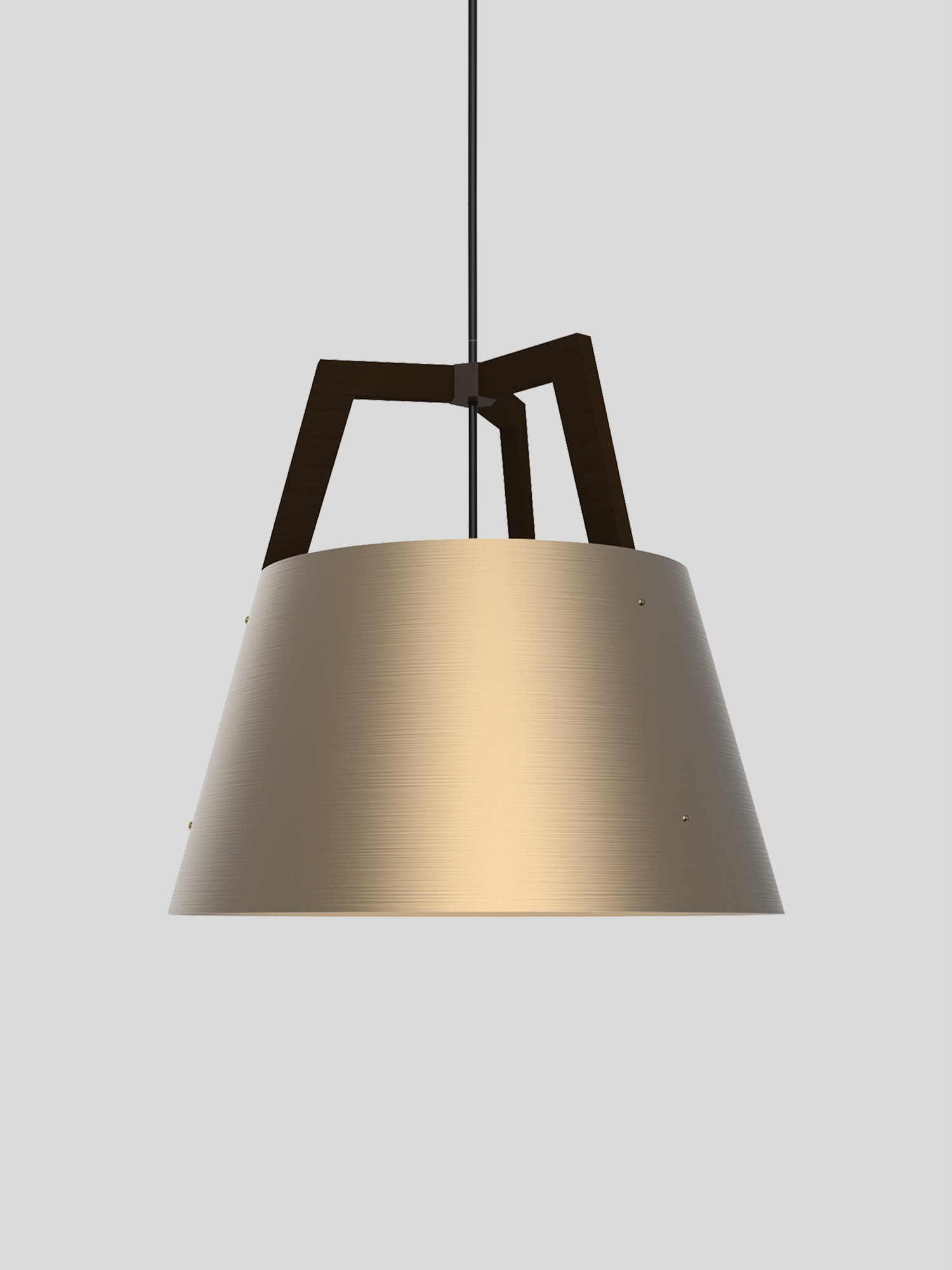

Imber
pendant
-
- Imber 17 dimensions: 17" Ø, 17.75"
- Imber 24 dimensions: 24" Ø, 22"
- Materials: solid wood, metal
- Imber 17 weight: 7 lb
- Imber 24 weight: 12 lb
- Wood grain will vary
- Specifications subject to change
- LAMPING
- Integrated LED Specifications
- Light output: 1647 Lumens (source), based on 2700K
- Light color*: 2700 K or 3500 K
- Additional color temperatures as well as sunset dimming are available upon request.
- Color accuracy: 90+ CRI
- Power usage: 19 W
- Input voltage: 120-277 V AC
- Dimmable: 0-10 V dimming at 120-277 V AC
- TRIAC and ELV dimming at 120 V AC only
- Medium Base E26 Specifications
- Imber 17 lamping:
- 1x E26 base, type A lamp, 75 W max
- Imber 24 lamping:
- 3x E26 base, type A lamp, 75 W max each
- Bulbs not included
- Input voltage: 250 V AC max
- DIFFUSER

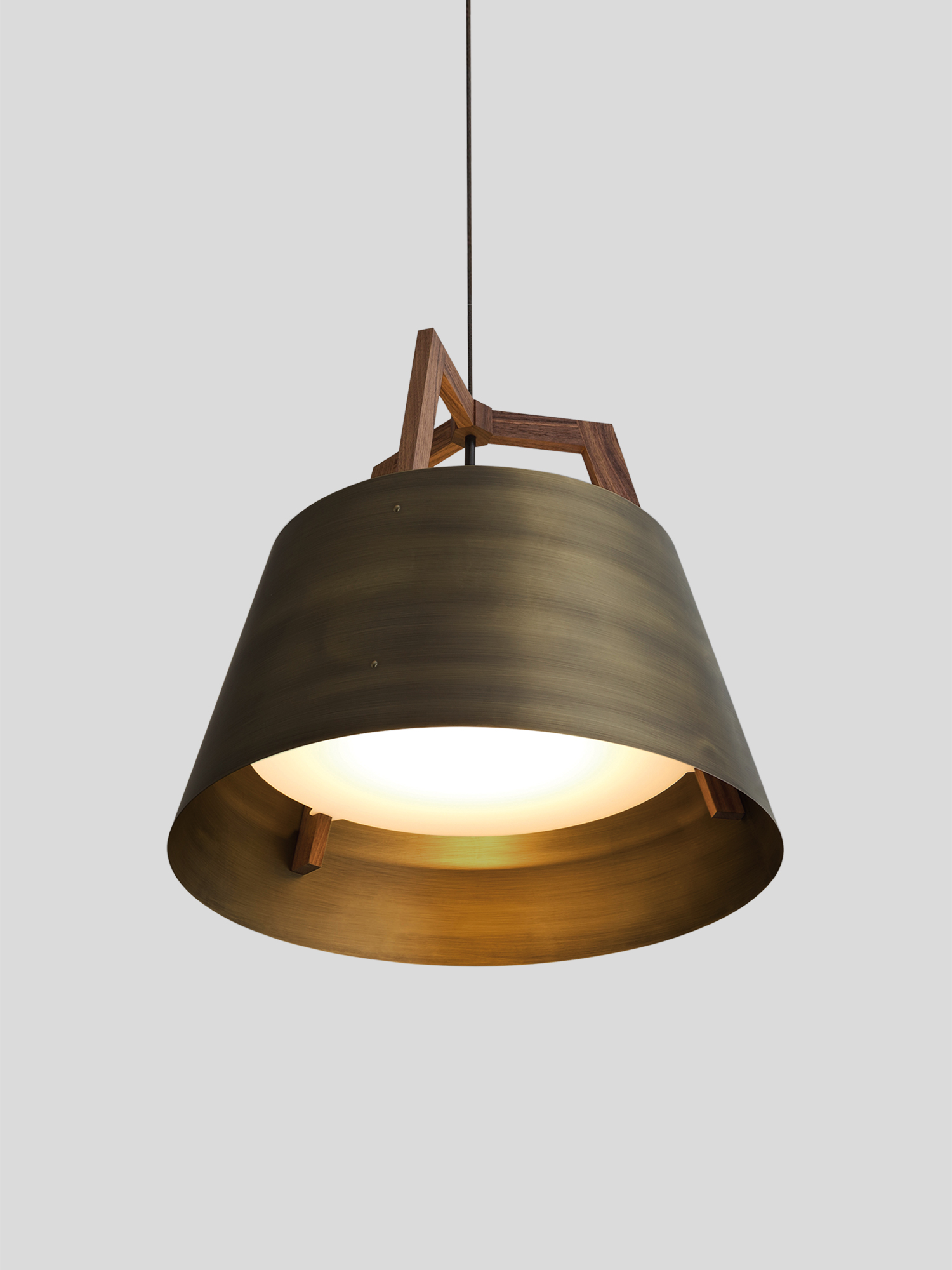

- Frosted white diffuser (CM-024)
- Diffuser is recommended when fixture
- location may allow for direct glare.
- Integrated LED option always comes with a diffuser
- SUSPENSION TYPE
- Corded
- 96" length of SVT wire is used.
- Wire is field adjustable and suitable for a sloped ceiling.
- Rigid
- Stem comes 6' long and is field cuttable to length (3/8" Ø).
- SUSPENSION & HARDWARE FINISH
- Standard Combinations
- Come with either black or satin nickel
- suspension, canopy, and sockets:

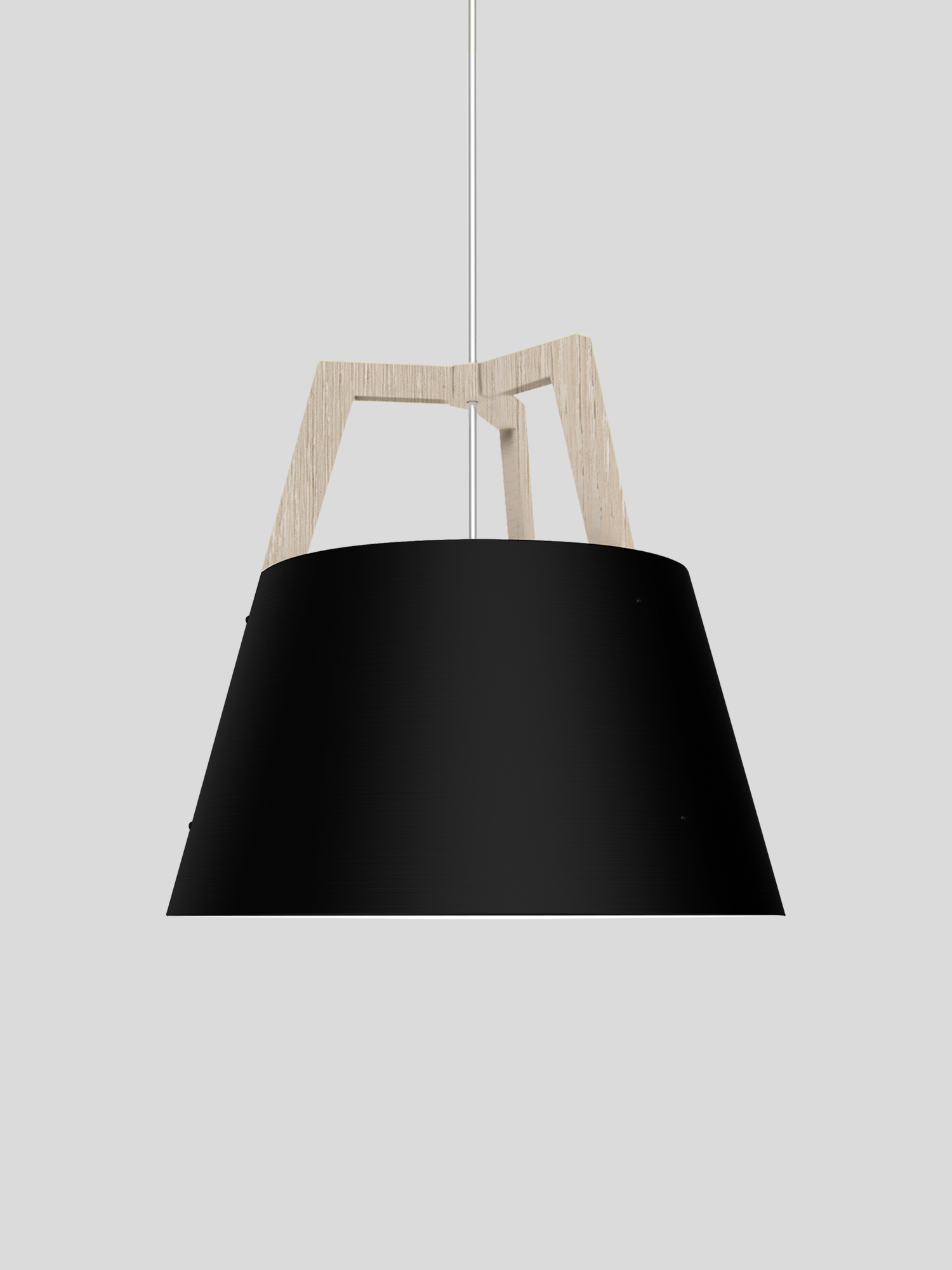

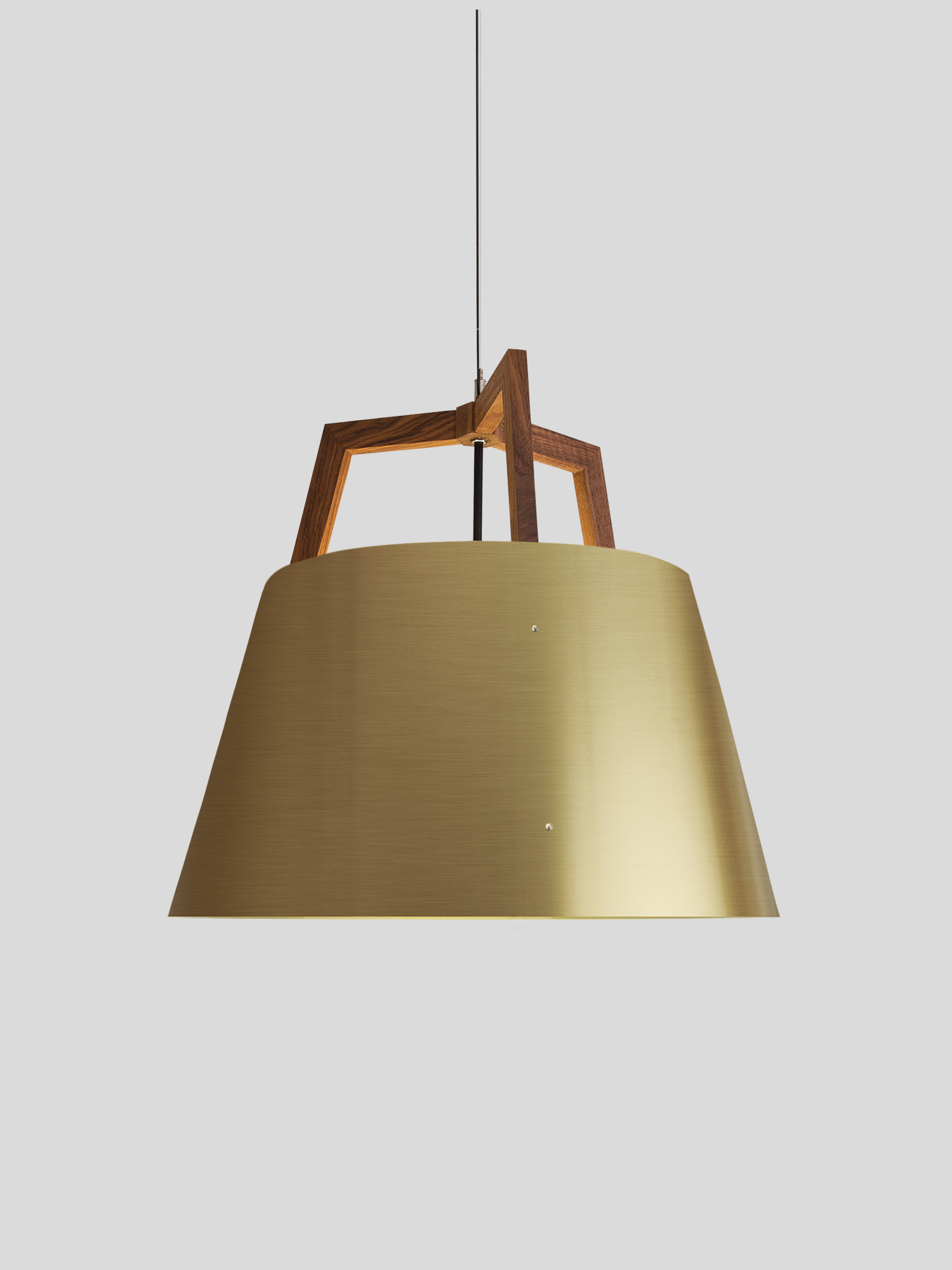

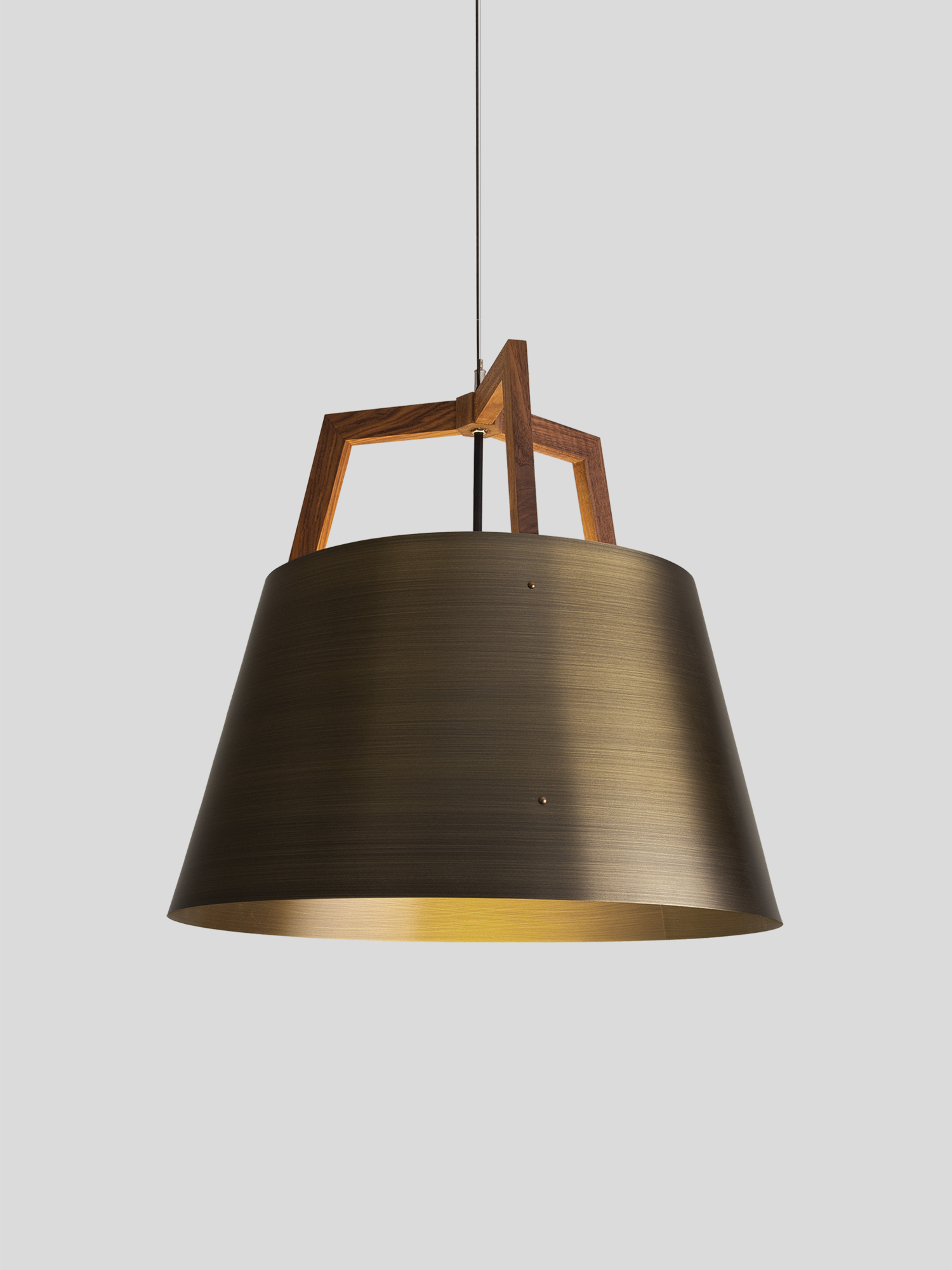

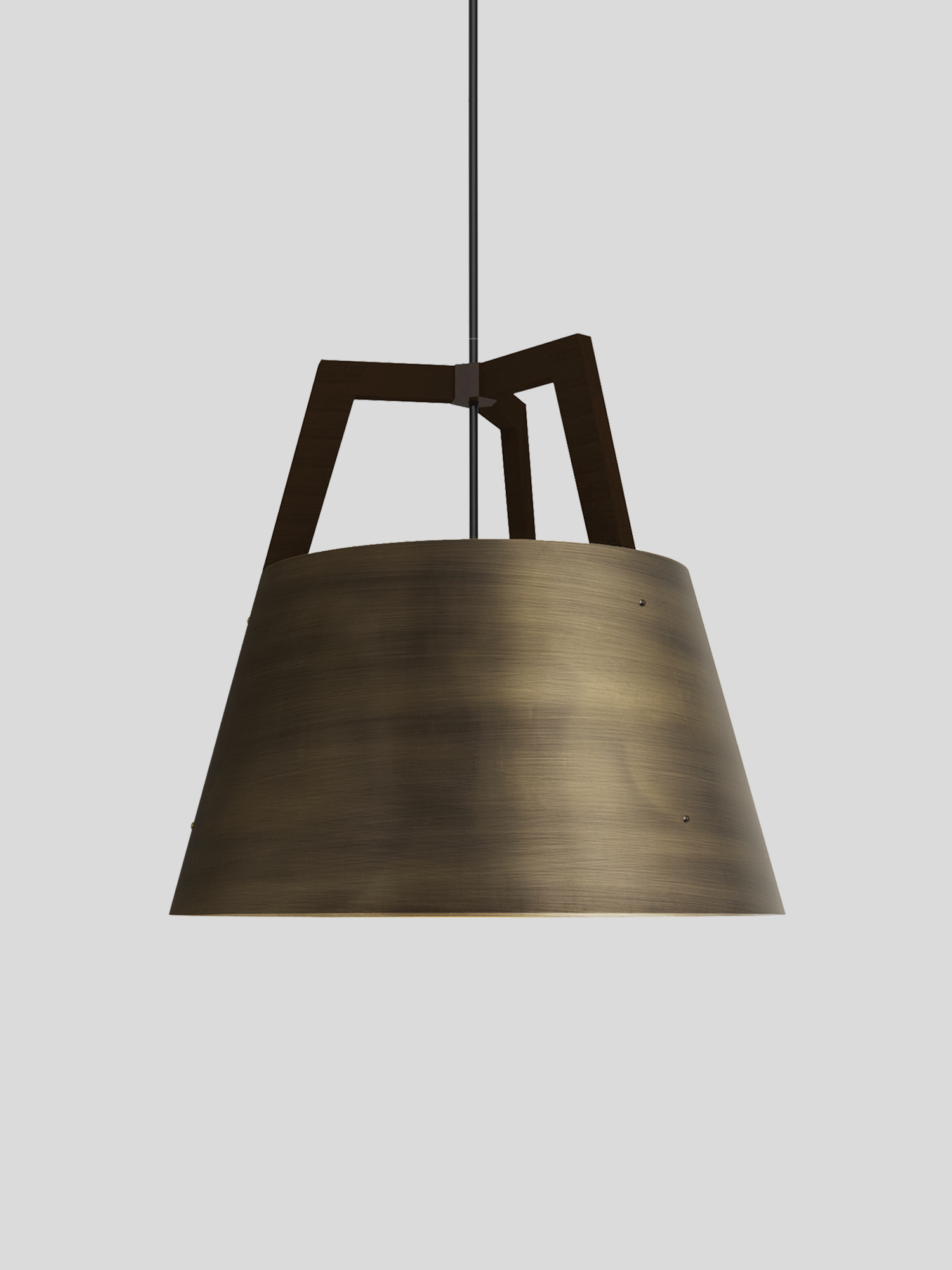

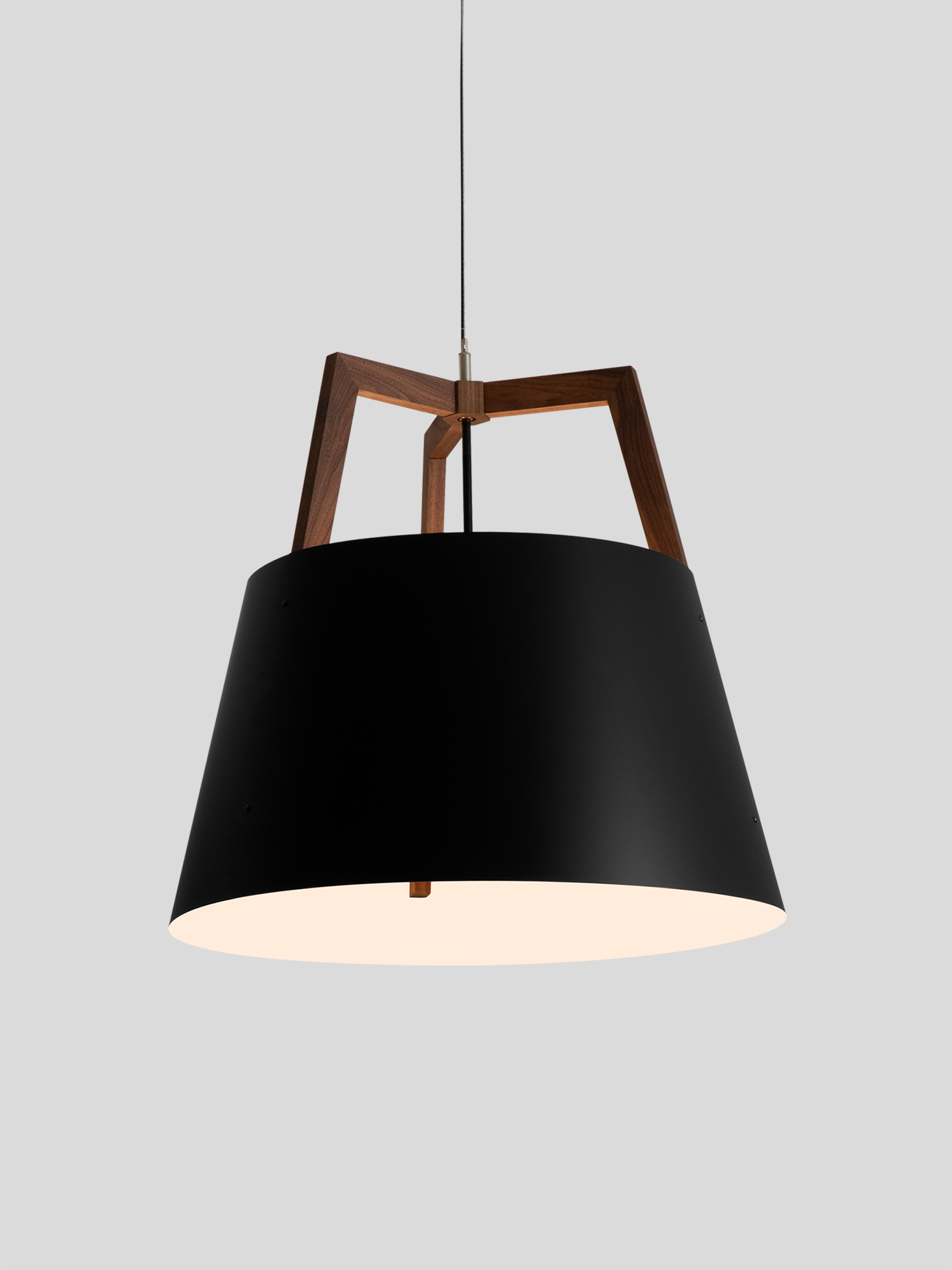

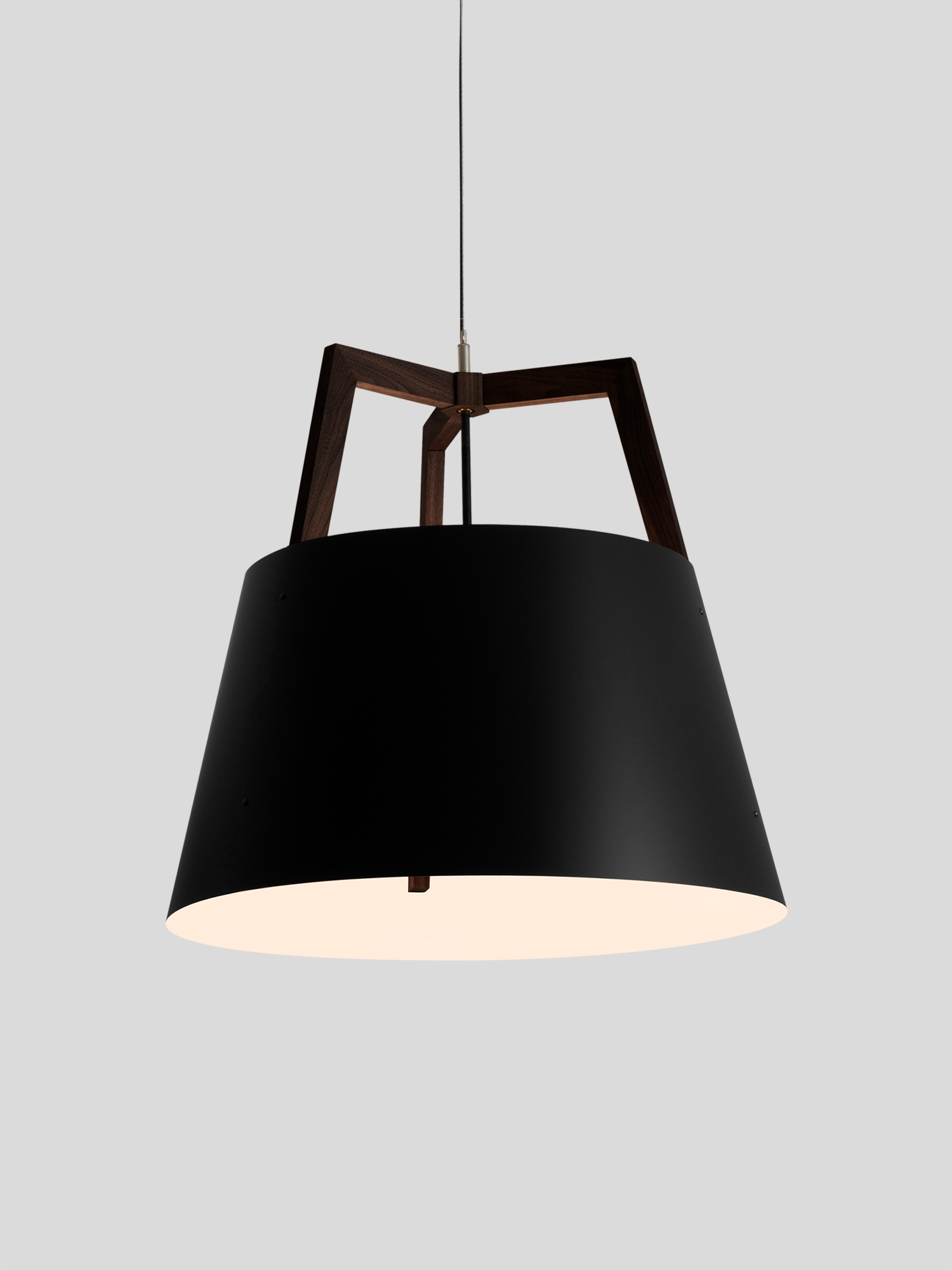

- Black: DW, DD, RW, GD, BD, BO, BW

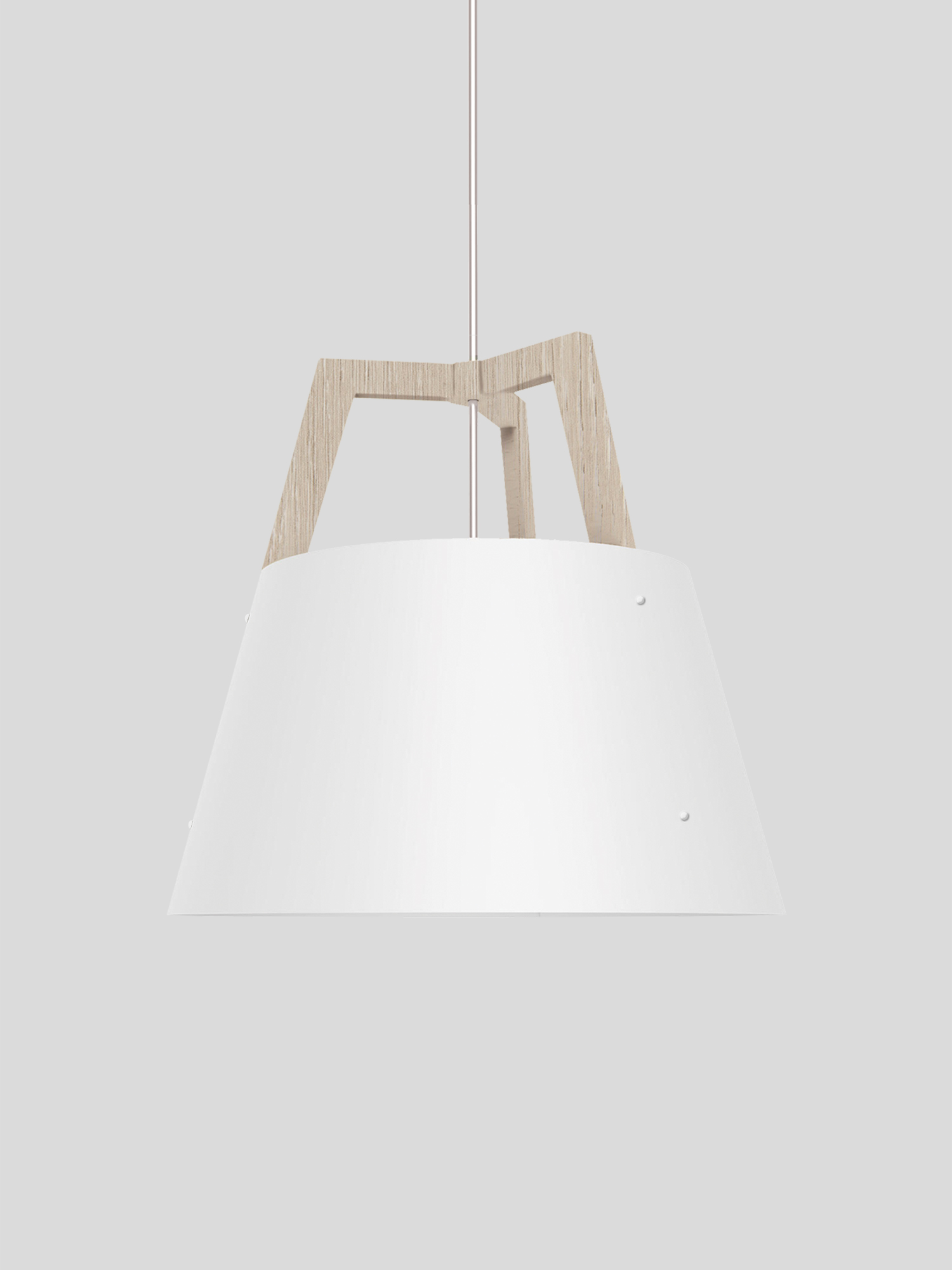

- Satin Nickel: WO
- Corded Versions
- White cord: satin nickel hardware
- Black cord: black hardware
- 24" Imber corded uses a 1/16" Ø steel cable for suspension
- CANOPIES
- See accessories page for more canopy information
- Canopy types:
- Imber 17 with Medium base socket
- Low-profile round canopy, SVT included
- Imber 17 & 24 with LED lamping
- Extended-profile round canopy, braided cord with
- steel cable included, required to house
- the LED driver (3.25" x 2.25" x 1.25")
- Imber 24 with Medium base socket
- Low-profile round canopy, SPT with steel cable included
- *Available in 3000K, 4000K and other color temperatures upon request
- California Prop 65 Warning
- TEARSHEET
- INSTALLATION INSTRUCTIONS - RIGID STEM SOCKET
- INSTALLATION INSTRUCTIONS - LED RIGID STEM
- INSTALLATION INSTRUCTIONS - IMBER 17 CORDED SOCKET
- INSTALLATION INSTRUCTIONS - IMBER 17 CORDED LED
- INSTALLATION INSTRUCTIONS - IMBER 24 CORDED SOCKET
- INSTALLATION INSTRUCTIONS - IMBER 24 CORDED LED
- PHOTOMETRIC DATA
- PRODUCT CARE INSTRUCTIONS
The Imber and Ignis were inspired by the same design principles that make Cerno and ICRAVE well suited to collaborate. Honesty, simplicity, elemental, timeless and quality are words that sit at the core of both companies’ design ethos and we believe these light fixtures embrace these qualities well. Each fixture was reduced to its essential parts – frame and shade – highlighting the interplay of the components, and accentuating the clean lines of the form.
— ICRAVE / Cerno
