MADE IN THE U.S.A.

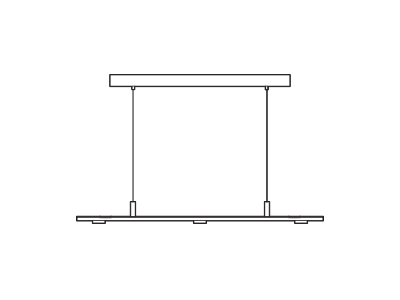

brevis 28
Dimensions – 28” x 2.5” – .50“ H
(711mm x 64mm x 13mm H)
weight – 7 lbs (3kg)

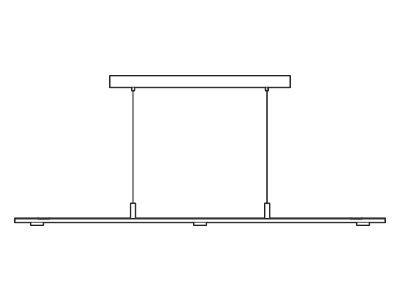

brevis 42
Dimensions – 42” x 2.5” – .50“ H
(1067mm x 64mm x 13mm H)
weight – 8 lbs (4kg)

Materials: aluminum, polymer
Brevis 28 weight: 7 lbs, Brevis 42 weight: 8 lbs
Energy efficient LED light source
Light output: 1720 Lumens (source)
[Down light: 1030, Up light: 690]
Light color: 2700 K (warm) or 3500 K (cool)
Color accuracy: 90+ CRI
LED power consumption: 16W
Input voltage: 120V
Dimmable (see driver below)
Linear Canopy included
Canopy finish matches fixture’s metal finish
Wood Canopy Covers are available
Walnut (CM-001) cover:
part #60-130-005W
Dark stained walnut (CM-002) cover:
part #60-130-005D
See website for more canopy information
6′ drop length, field adjustable
Suitable for a sloped ceiling
Specifications subject to change

TEARSHEET

INSTRUCTIONS

GENERAL PRODUCT CARE SHEET



©2017 Cerno, L.L.C. All Rights Reserved. The Cerno graphic is a registered trademark of cerno, L.L.C.  Cerno reserves the right to change specifications for product improvements without notification.

Material & Finish Options

Body:
brushed aluminum (CM-006) A
black anodized aluminum (CM-007)



































A clean, minimal fixture finely executed. With multiple down and up lights, the Brevis provides lots of usable light in a very unobtrusive design.

Nick Sheridan
Designer
