DESIGNED AND MADE IN CALIFORNIA
Vix 82
linear pendant
-
- Dimensions: 82" x 8", 0.75"
- Materials: solid wood, polymer, aluminum
- Product weight: 19 lb
- Light source: integrated LED
- Light output - total: 3440 Lumens (source)
- Light output - downlight: 2060 Lumens (source)
- Light output - uplight: 1380 Lumens (source)
- Light color*: 2700 K or 3500 K
- Color accuracy: 90+ CRI
- Power usage: 32 W
- Dimmable (see driver below)
- Brushed aluminum (CM-006) linear canopy included
- Canopy dimensions: 20.6" x 4", 1.7"
- See website for more canopy information
- Drop length field adjustable: 0'-10" min, 8'-0'' max
- Suitable for a sloped ceiling up to 45° if oriented with the short edge of the canopy in line with the slope.
- Not suitable for sloped ceilings if oriented with the long edge of the canopy in line with the slope.
- Wood grain will vary
- Wood shade may slightly bow or twist along 82" length
- Specifications subject to change
- *Available in 3000K, 4000K and other color temperatures upon request
TEARSHEET

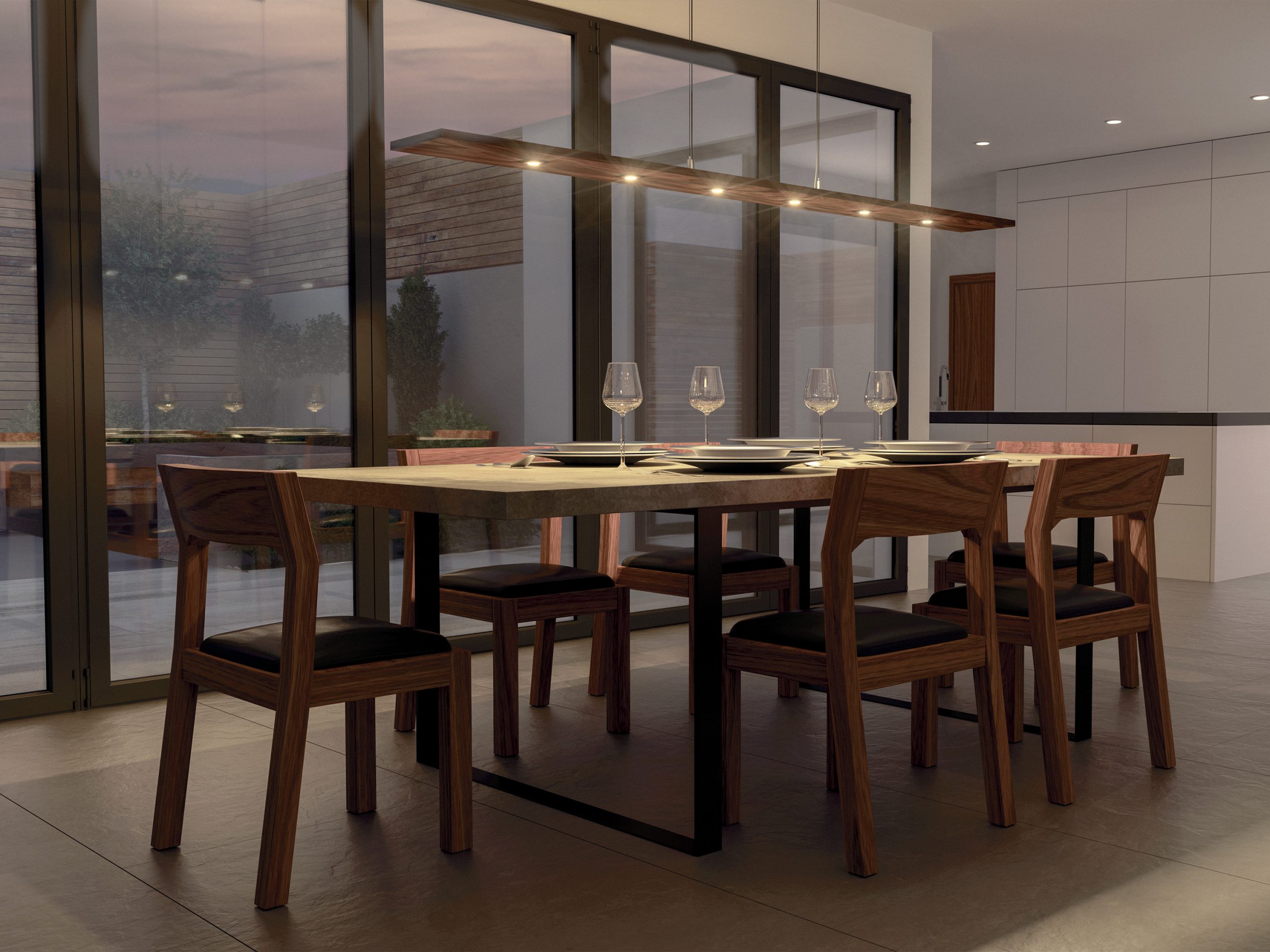

A clean, modern fixture finely executed. With multiple down and up lights, the Vix provides lots of usable light in a very unobtrusive design.
— Nick Sheridan, Designer
Vix 82
MATERIAL AND FINISH OPTIONS
Vix 82 part # 07-200--
- walnut (CM-001)
- dark stained walnut (CM-002)
- white washed oak (CM-095)
- 2700K LED
- 3500K LED
- AC Input Voltage Range: 120-277 V 120 V input: TRIAC, ELV & 0-10 V dimmable 240 & 277 V input: only 0-10 V dimmable
- white polymer shade (CM-052)
- brushed aluminum Vix 82 linear canopy (006)
